Mills >> Retch Planetary Ball Mill PM 200 Retsch Mill NEW

Retch Planetary Ball Mill PM 200 Retsch Mill NEW



"Planetary Ball Mills are used wherever the highest degree of fineness is required. Apart from the classical mixing and size reduction processes, the mills also meet all the technical requirements for colloidal grinding and have the energy input necessary for mechanical alloying processes. The extremely high centrifugal forces of a planetary ball mill result in very high pulverization energy and therefore short grinding times.

The PM 200 is a convenient benchtop model with 2 grinding stations

You may also be interested in the High Energy Ball Mill Emax, an entirely new type of mill for high energy input. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time." (RETSCH)



Application Examples:

alloys, bentonite, bones, carbon fibres, catalysts, cellulose, cement clinker, ceramics, charcoal, chemical products, clay minerals, coal, coke, compost, concrete, electronic scrap, fibres, glass, gypsum, hair, hydroxyapatite, iron ore, kaolin, limestone, metal oxides, minerals, ores, paints and lacquers, paper, pigments, plant materials, polymers, quartz, seeds, semi-precious stones, sewage sludge, slag, soils, tissue, tobacco, waste samples, wood, ... continue to application database



Product Advantages:

powerful and quick grinding down to nano range

reproducible results due to energy and speed control

suitable for long-term trials

2 different grinding modes (dry and wet)

measurement of energy input

wide range of materials for contamination free grinding

Safety Slider for safe operation

comfortable parameter setting via display and ergonomic 1-button operation

automatic grinding chamber ventilation

10 SOPs can be stored

programmable starting time

power failure backup ensures storage of remaining grinding time

jars with O-type sealing for safe operation, pressure tight



Features

Applications pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying
Field of application agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material soft, hard, brittle, fibrous - dry or wet
Size reduction principle impact, friction
Material feed size* < 4 mm
Final fineness* < 1 µm, for colloidal grinding < 0.1 µm
Batch size / feed quantity* max. 2 x 50 ml
No. of grinding stations 2
Speed ratio 1 : -2
Sun wheel speed 100 - 650 min-1
Effective sun wheel diameter 157 mm
G-force 37.1 g
Type of grinding jars "comfort", optional areation covers, safety closure devices
Material of grinding tools hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, silicon nitride, zirconium oxide
Grinding jar sizes 12 ml / 25 ml / 50 ml / 80 ml / 125 ml
Setting of grinding time digital, 00:00:01 to 99:59:59
Interval operation yes, with direction reversal
Interval time 00:00:01 to 99:59:59
Pause time 00:00:01 to 99:59:59
Storable SOPs 10
Measurement of input energy possible yes
Interface RS 232 / RS 485
Drive 3-phase asynchronous motor with frequency converter
Drive power 750 W
Electrical supply data different voltages
Power connection 1-phase
Protection code IP 30
Power consumption ~ 1250 W (VA)
W x H x D closed 630 x 468 x 415 mm
Net weight ~ 72 kg
Standards CE
Patent / Utility patent SafetySlider (DE 202008008473)

Please note:
*depending on feed material and instrument configuration/settings



"The grinding jars are arranged eccentrically on the sun wheel of the planetary ball mill. The direction of movement of the sun wheel is opposite to that of the grinding jars in the ratio 1:-2.
The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called Coriolis forces. The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill." (RETSCH)



For additional details regarding this equipment, please visit http://www.retsch.com/products/miling/ball-mills/planetary-ball-mill-pm-200/ to download the product brochure and data sheet.

16382

16708

16709

16710

16711

16712

16714

16719

16720

16721

16722

16723

16724

16730

16731

16732

16733

16734

16735

16904

17012

Bottle Roller 10 shelf RPM Speed

COVARIS CP02 CryoPrep Dry Pulverization System used as-is powers on looks nice Information gathered- Automated system with variable force, electronically controlled cryogenic sample pulverization. Photo of system similiar

Retch Planetary Ball Mill PM 200 Retsch Mill NEW

Retsch AS 200 JET AIR JET SIEVING MACHINE used

Retsch Cyclone Mill TWISTER Retsch Rotor Mill NEW

Retsch Disc Mill DM 200 Retsch Mill NEW

Retsch Disc Mill DM 400 Retsch Mill NEW

Retsch Drum Mill TM 300 XL Retsch Mill NEW PRODUCT

Retsch Jaw Crusher BB 400 XL Retsch Mill NEW PRODUCT

Retsch Jaw Crusher BB 600 XL Retsch Mill NEW PRODUCT

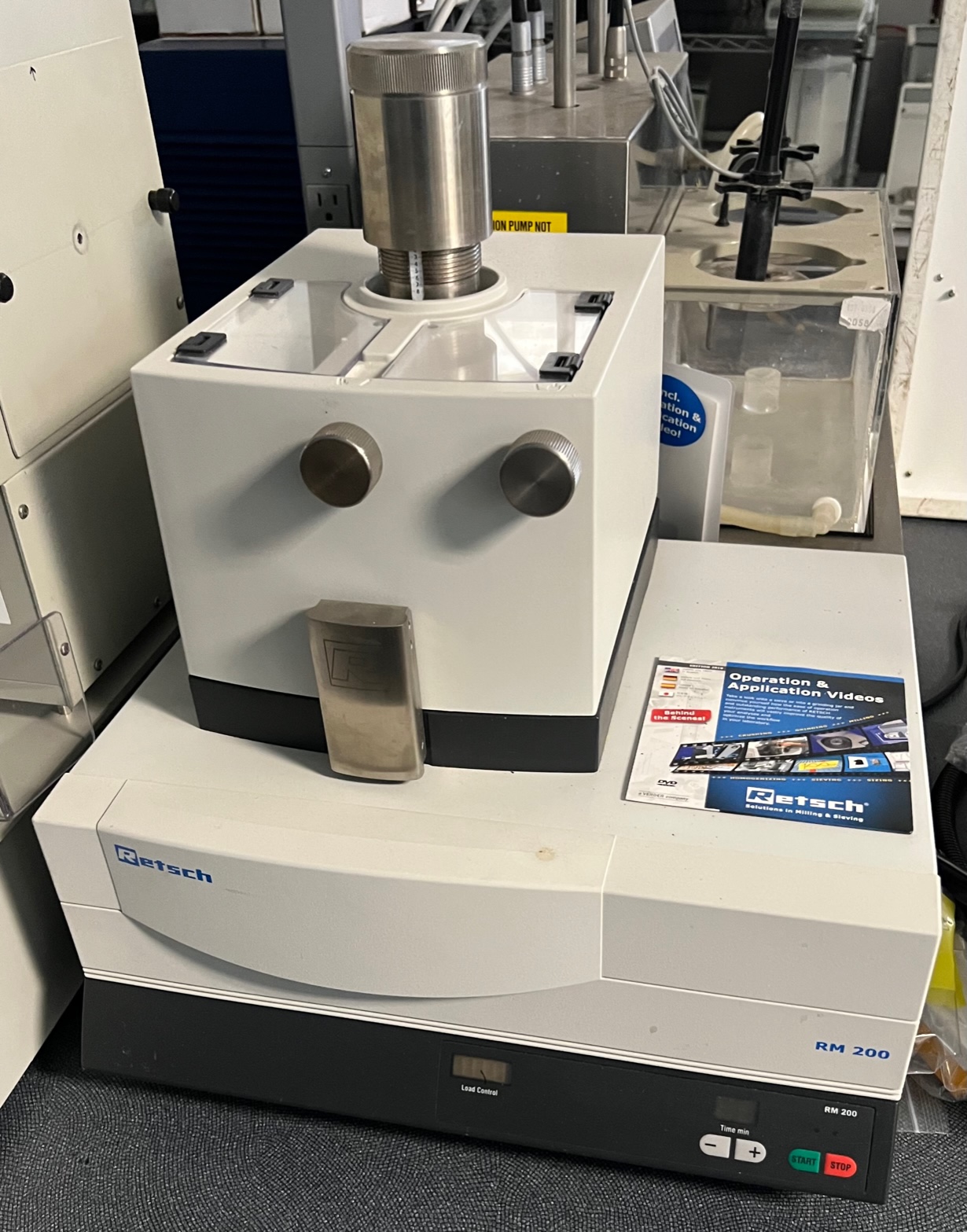

Retsch Mortar Grinder RM 200 Retsch Mill NEW
